Center Clamp Tire Changers
Simple operation, superior wheel protection
Hunter offers four models of center-clamp tire changers for any need. From the popular three button leverless Auto34 to more basic models, damage free operation is attainable for all budgets
Features at-a-glance
- Leverless and traditional options
- Center-shaft clamping
- Cam plate tightens under torque
- Adjustable height mounting
Specifications at-a-glance
860 ft-lbs.
Torque
Torque 0-14+ rpm
Variable Speed
26 & 34 in.
Max Rim Diameters
19 in.
Max Rim Width
Set Up An On-Site Demo And See How Hunter Can Increase Your Bottom Line!
Call
Mike Berry
Call Mike Berry
Product family at-a-glance
Auto34R
- 10-34 in. Capability
- Leverless polymer head
- Telescoping chassis sets diameter
- High-volume blast tank
- Dual roller arms
- Automatic indention
- Standard press arm
- Standard wheel lift
TC39
- 10-26 in. Capability
- Leverless polymer head
- Dual roller arms
- Manual indention
- Standard press arm
- Optional wheel lift and side shovel
TC37
- 10-26 in. Capability
- Standard polymer head
- Dual roller arms
- Manual indention
- Standard press arm
- Optional wheel lift and side shovel
Give your technicians a break
Consistent service times, fewer technician decisions and autonomous WalkAway™ mode makes tire service on the Hunter Revolution™ simpler than ever.
Auto34R Exclusive Features
Precise Diameter Control
Electric telescoping chassis is smooth and responsive.
Simple controls
Auto34R features three button operation
Automatic Indention
Simplifies and speeds bead loosening
Memory Function
Quickly returns toolhead to preset location
High-volume blast tank
Slim profile and large capacity to seat truck and SUV tires
Small footprint
Improved features save valuable floor space
Call Mike Berry
Make wheel servicing safer and easier
Leverless polymer toolhead
Auto34R & TC39- No scratch polymer head functions as its own lever
- Head is wide and thin for very low mounting stress
- Head does not ride on the wheel face for scratch free operation
Conventional mounthead
TC37- Durable polymer head for use with traditional levers.
- Prevents wheel damage and follows the rim edge, no diameter adjusting needed.
- Locks in vertically for clad wheel protection (TC37 only)
Powerful press arm
Auto34R, TC39 & TC37- Assists mounting toughest tires
- Demounting assistance for runflats
Dual bead rollers
Auto34R, TC39, TC37- Easy bead loosening
- Lower roller demount bottom bead, making heavy tires managable
- Dual rollers essential for match mounting and bead massage
Leverless polymer toolhead
Auto34R & TC39- No scratch polymer head functions as its own lever
- Head is wide and thin for very low mounting stress
- Head does not ride on the wheel face for scratch free operation
Conventional mounthead
TC37- Durable polymer head for use with traditional levers.
- Prevents wheel damage and follows the rim edge, no diameter adjusting needed.
- Locks in vertically for clad wheel protection (TC37 only)
Powerful press arm
Auto34R, TC39 & TC37- Assists mounting toughest tires
- Demounting assistance for runflats
Dual bead rollers
Auto34R, TC39, TC37- Easy bead loosening
- Lower roller demount bottom bead, making heavy tires managable
- Dual rollers essential for match mounting and bead massage
Secure wheels with no damage
Center-clamp
- Grip from the strongest part of the rim
- No teeth to damage rim
- Dual rollers essential for match mounting and bead massage
Cam plate
- Tightens just as much as needed to grip wheel
- Three adjustment heights adapt to all wheel types

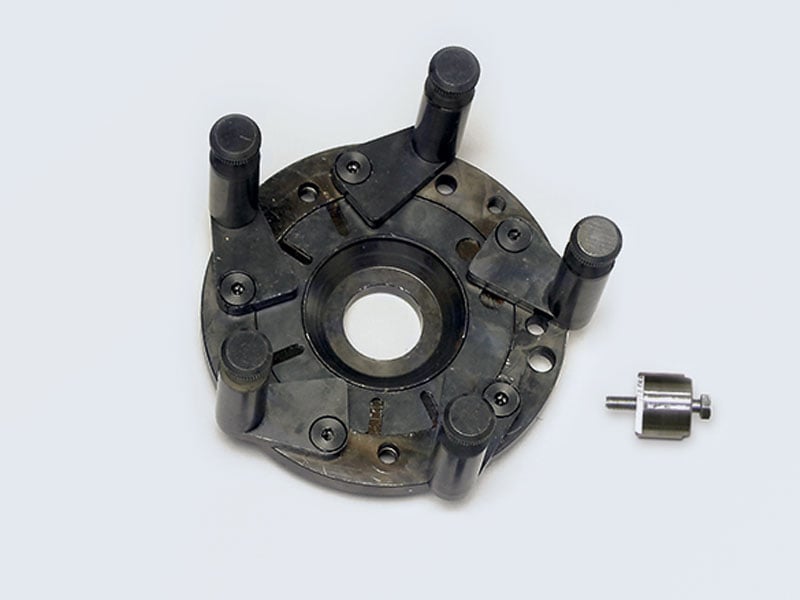

Flange plates (optional)
- Two options for clad wheels and reverse wheels needing extra protection
Center-clamp
- Grip from the strongest part of the rim
- No teeth to damage rim
- Dual rollers essential for match mounting and bead massage
Cam plate
- Tightens just as much as needed to grip wheel
- Three adjustment heights adapt to all wheel types
Flange plates (optional)
- Two options for clad wheels and reverse wheels needing extra protection
Ease-of-use features for technicians
Wheel lift (Auto34R)
Standard on Auto34R Pick and place lift makes lifting and clamping heavy assemblies easy
Wheel lift (TC models)
Optional on TC39 & TC37 Simplifies lifting heavy assemblies. Safe and away from work area.
PowerOut side shovel
Optional on TC37 & TC39 Break beads effortlessly to make tire service easier.
Blast inflation
Handheld air blast nozzle directs burst where needed to seal beads.
Wheel lift (Auto34R)
Standard on Auto34R Pick and place lift makes lifting and clamping heavy assemblies easy
Wheel lift (TC models)
Optional on TC39 & TC37 Simplifies lifting heavy assemblies. Safe and away from work area.
PowerOut side shovel
Optional on TC37 & TC39 Break beads effortlessly to make tire service easier.
Blast inflation
Handheld air blast nozzle directs burst where needed to seal beads.
Additional features
Variable speed
- 0-14+ rpm forward speed is infinitely variable
- Slow speed for reverse
- Head does not ride on the wheel face for scratch free operation
Powerful drive
860+ ft-lbs of torque won't stall on tough assemblies
Variable speed
- 0-14+ rpm forward speed is infinitely variable
- Slow speed for reverse
- Head does not ride on the wheel face for scratch free operation
Powerful drive
860+ ft-lbs of torque won't stall on tough assemblies
See how other shops are using them
Equip your shop with match-mounting capabilties.
Eliminate wheel vibrations by pairing the tire machine with a Road Force® Elite wheel balancer.
Explore further
Revolution™
WalkAway™ from your tire changer to perform other tasks while it automatically demounts the tire.
Hunter service
Hunter deploys the largest service force of highly-qualified representatives in the industry.
Innovation Team
Hundreds of patented and exclusive features begin with the research and development team of mechanical, electrical and software engineers.
| Brochures | ||
|---|---|---|
| Auto34R Tire Changer Brochure | 3/19/2021 | |
| TC37 & TC39 Tire Changers Brochure | 3/19/2021 | |
| TC33 Tire Changer Brochure | 4/22/2022 | |
| TC33M Tire Changer Brochure | 4/22/2022 |
| Specification Sheets | ||
|---|---|---|
| Auto34R Tire Changer Specifications | 12/29/2021 | |
| TC37 & TC39 Tire Changers Specifications | 12/29/2021 |
| Accessories | ||
|---|---|---|
| Tire Changer Accessories | 1/17/2022 |
