Hunter HawkEye Elite® Alignment Machine
Higher productivity leads to greater profits
Results in 70 seconds
Instantly capture alignment readings
Unmatched software
Get accurate results the first time
Safety Systems
Built-in support for OEM required resets
Set Up An On-Site Demo And See How Hunter Can Increase Your Bottom Line!
Call
Mike Berry
Call Mike Berry
Fast setup time and results with the HawkEye Elite®
Get alignment results in 70 seconds
Fastest procedure
Only with a HawkEye Elite® can you perform a 70 second alignment check
Minimal setup time
One trip around the vehicle means faster alignments
Easily sell more services
Show transparency to customers through easy-to-understand printouts
70-second wheel alignment results
Four precision cameras provide alignment measurements with pinpoint accuracy. Hunter’s QuickGrip® adaptors feature a light design and narrow profile, providing fast and efficient readings.
1 trip around the vehicle
0 console interaction
72 steps total
Setup in seconds
Speed setup time with Hunter's patented QuickGrip® adaptors and 3D targets
Fast installation
Spring-loaded clamping arms install easily — off-center placement has no affect on accuracy.
Avoid rim damage
Clamps hook tires and protective ring provides no metal-to-metal contact.
Efficient design
Lightweight, durable and low-profile form make QuickGrip® adaptors a technician-favorite.
Easy to clamp
- Spring-loaded arms grip the tire
- Thumb switch secures the clamp
- Off-center clamping has no effect on accuracy
No metal-to-metal contact
- Grips tire, not rim
- Protective ring hugs rim
Lightweight & durable
- Weighs only 6 lbs. — nearly 50% lighter than previous designs
- Shop-tough polymer structure withstands drops
- No electronics, cables or calibration
- Only occasional cleaning required
Slim profile
- Approximately 9-in. profile
- Easy to work around
- Great for narrow bays
Quick Change Arms
- Accommodate assemblies up to 37 in.
- One arm fits approximately 90% of applications
Off-center application
WinAlign® software calculates actual wheel position regardless of target centering
Easy to clamp
- Spring-loaded arms grip the tire
- Thumb switch secures the clamp
- Off-center clamping has no effect on accuracy
No metal-to-metal contact
- Grips tire, not rim
- Protective ring hugs rim
Lightweight & durable
- Weighs only 6 lbs. — nearly 50% lighter than previous designs
- Shop-tough polymer structure withstands drops
- No electronics, cables or calibration
- Only occasional cleaning required
Slim profile
- Approximately 9-in. profile
- Easy to work around
- Great for narrow bays
Quick Change Arms
- Accommodate assemblies up to 37 in.
- One arm fits approximately 90% of applications
Off-center application
WinAlign® software calculates actual wheel position regardless of target centering
ADAS Solutions
Keep ADAS work in your own shop
Perform static and dynamic ADAS calibrations
Hunter ADASLink® Full Diagnostic Scan Tool
- Dynamic (driving) ADAS calibrations
- Static (fixture) ADAS calibrations with DAS 3000
- FCA secure gateway compatible
- Pre- and post-scan ready
DAS 3000 ADAS Fixture
- No more plumb bobs and tape measures
- Guided positioning system with ADASLink®
- Hunter training and support
- First year of static calibration software included
Pre- and Post-Scans
Dynamic Calibrations
Forward-Facing Radar & Camera Calibrations
Blind Spot & Surround View Calibrations

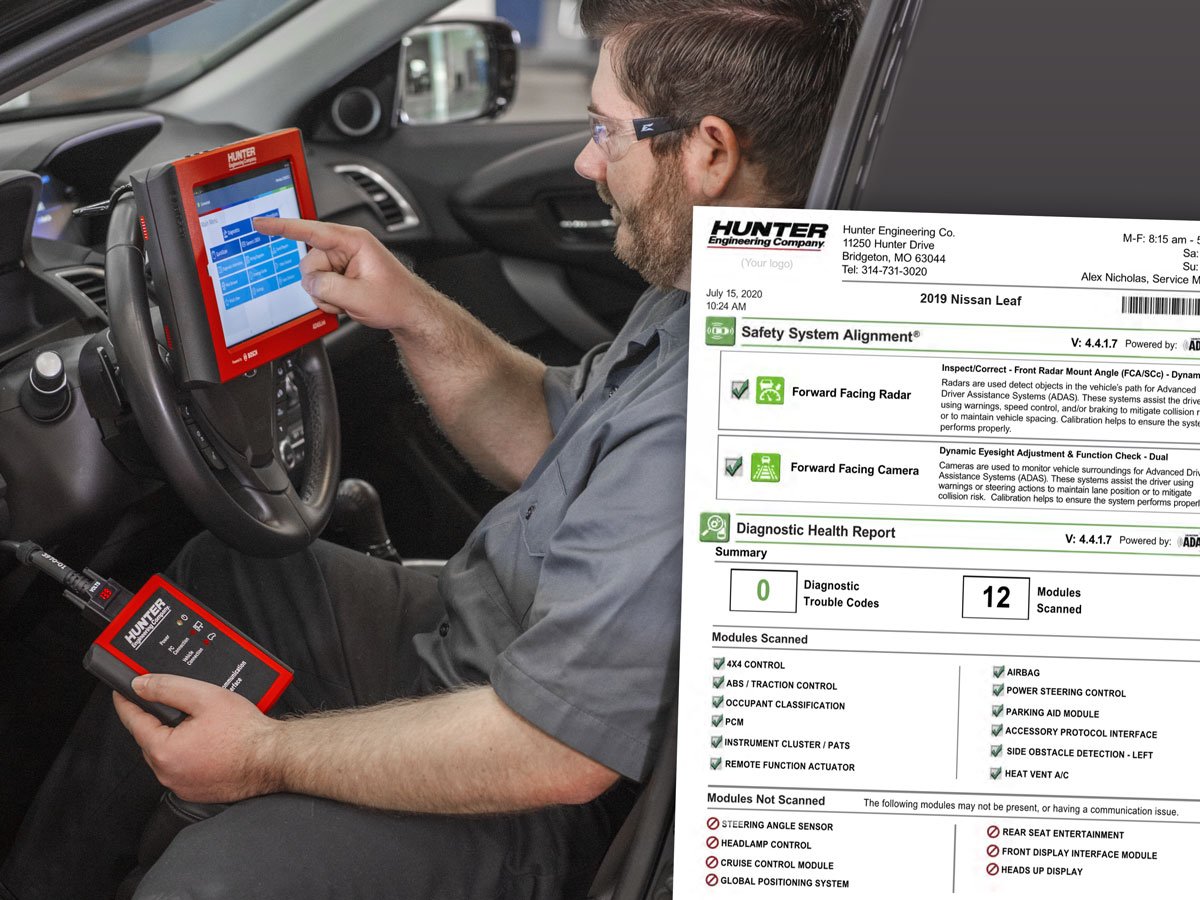

Pre- and Post-Scans
Connect the Vehicle Communication Interface (VCI) to the vehicle’s OBD-II port to diagnose and interact with the vehicle.

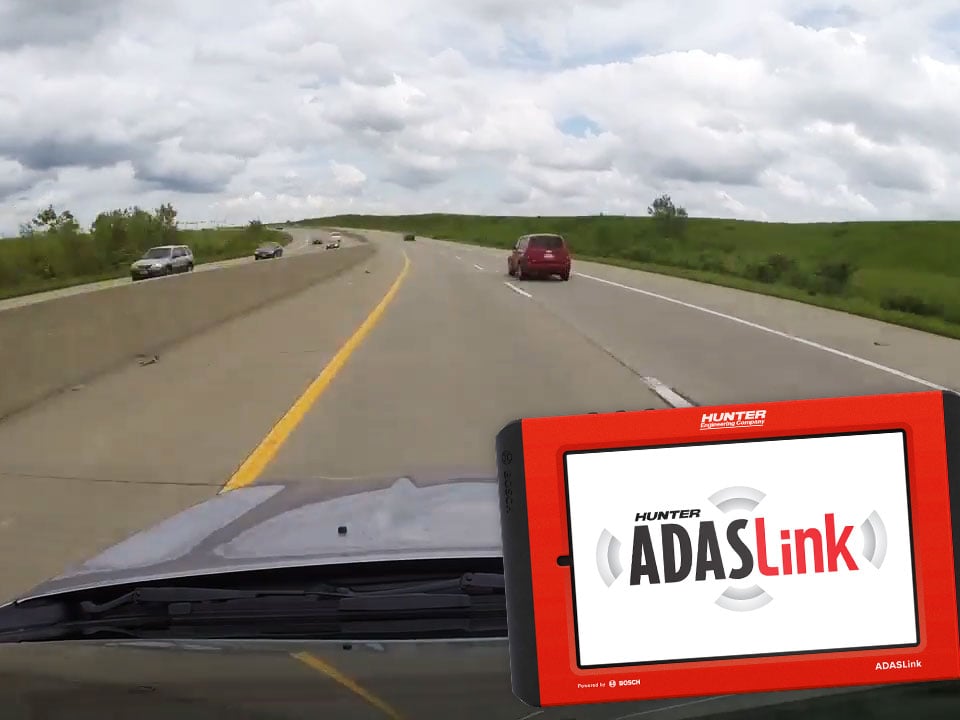

Dynamic Calibrations
Perform dynamic calibrations while driving the vehicle as required.

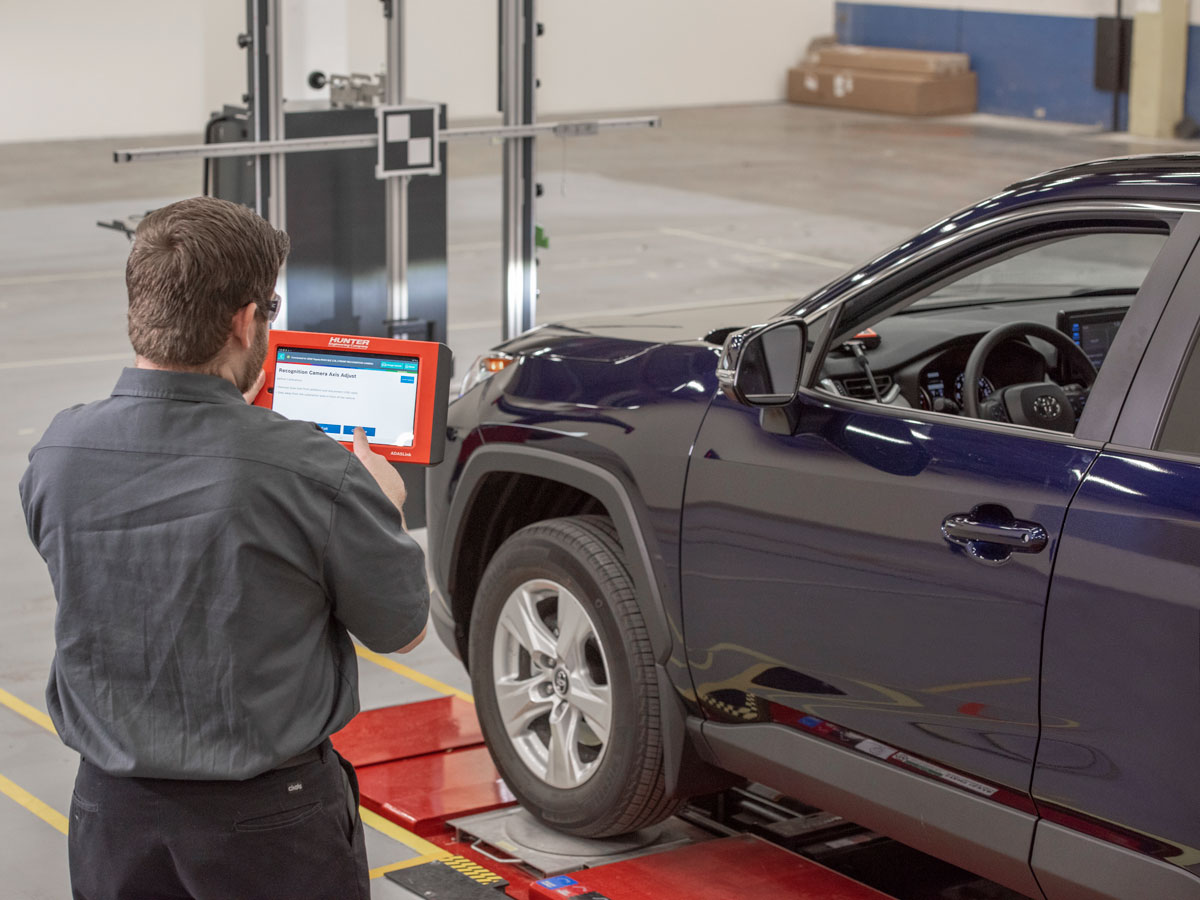

Forward-Facing Radar & Camera Calibrations
Calibrate front radar and camera sensors as they relate to the vehicle’s direction of travel.

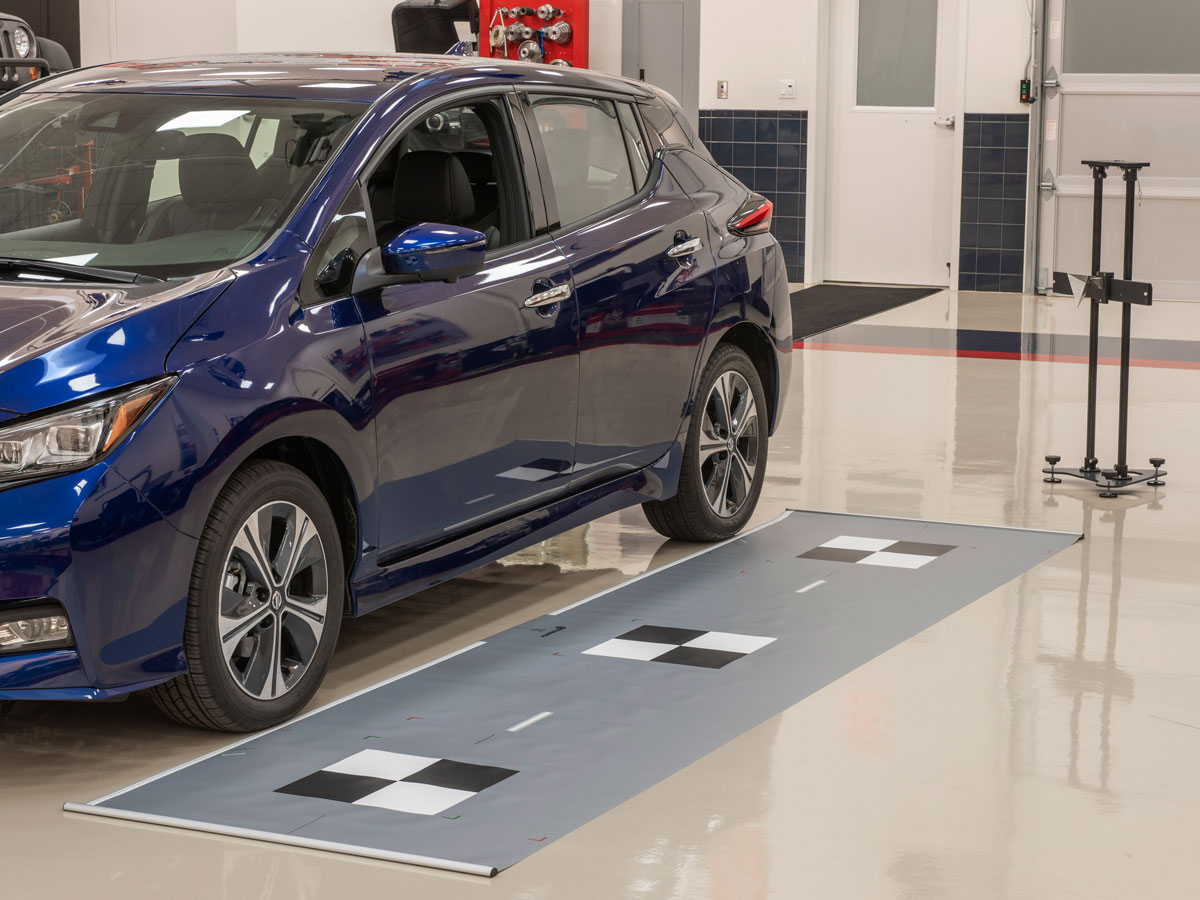

Blind Spot & Surround View Calibrations
Calibrate side and rear sensors that notify the driver of potential hazards outside of their field-of-vision.

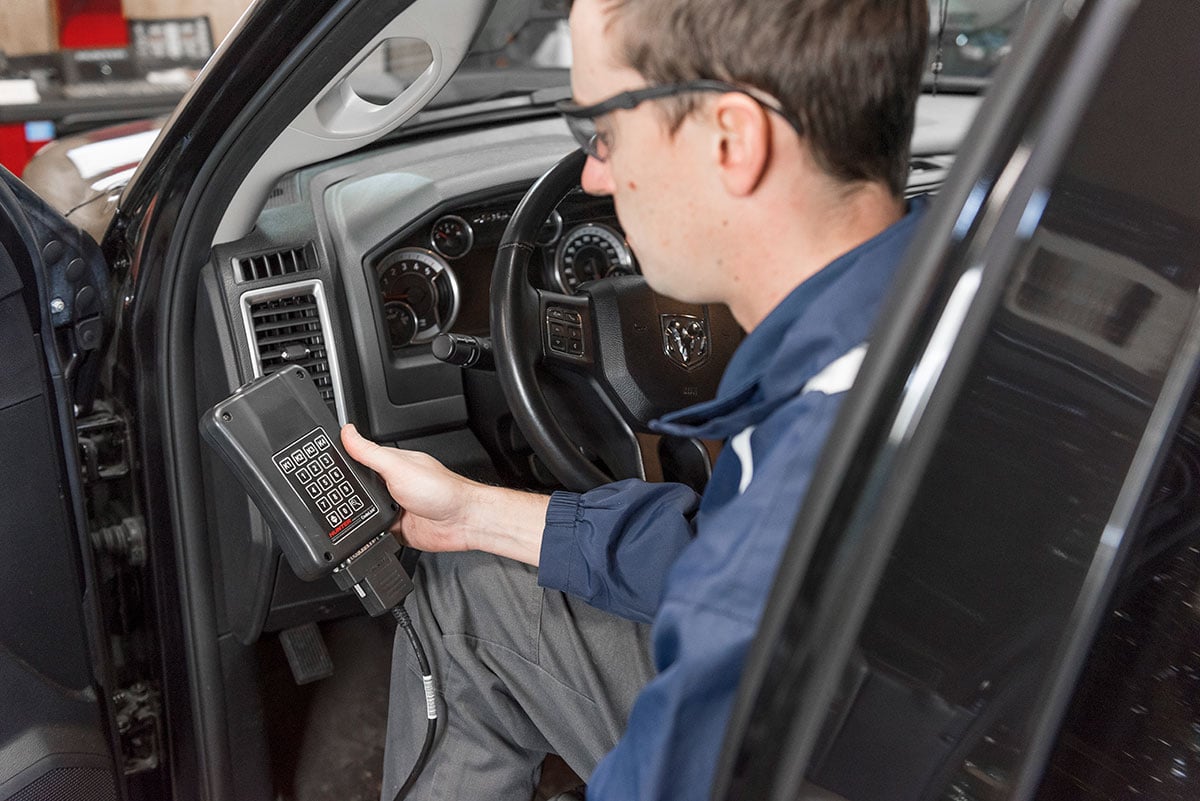

Reset steering angle sensors
Over 110 million vehicles require resets
Integrated with the aligner
Reset steering angle sensors
CodeLink®’s patented integration “links” the vehicle OBD-II system to the aligner to align steering angle sensors to the vehicle’s alignment geometry.Over 110 million vehicles require resets
Hunter has supported electronic steering system resets as required by the OEM since 2009. Several vehicle systems use electronic steering system output to determine the vehicle’s travel direction.Integrated with the aligner
CodeLink® is wirelessly integrated with Hunter WinAlign® systems with simple instructions shown on aligner screen.Unmatched software
Align accurately the first time using Hunter's award-winning WinAlign® software
Extensive database
WinAlign® is powered by the most extensive vehicle information database for North America’s 285 million vehicles.
Vehicle-specific procedures
Guide your technicians with step-by-step instructions specific to the vehicle being serviced.
Over 30 years of development
Constant improvements and support come from the largest R&D department in the undercar industry.
ExpressAlign®
WinToe®
Tools & Kits Database
Virtual View®
Control Arm Movement Monitor®
Wheel-Off Adjustment

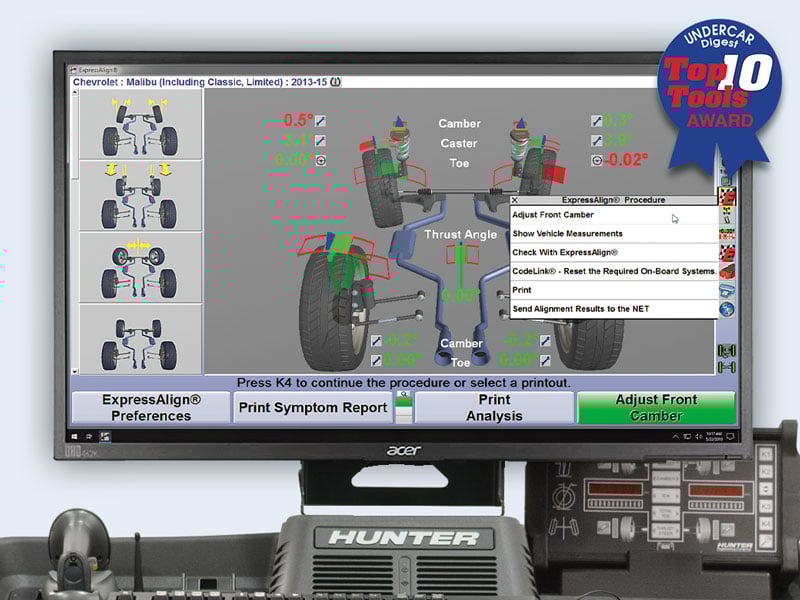

ExpressAlign®
Perform every alignment with a streamlined procedure. Analyze each job and present the optimal action sequence with the minimum steps required.

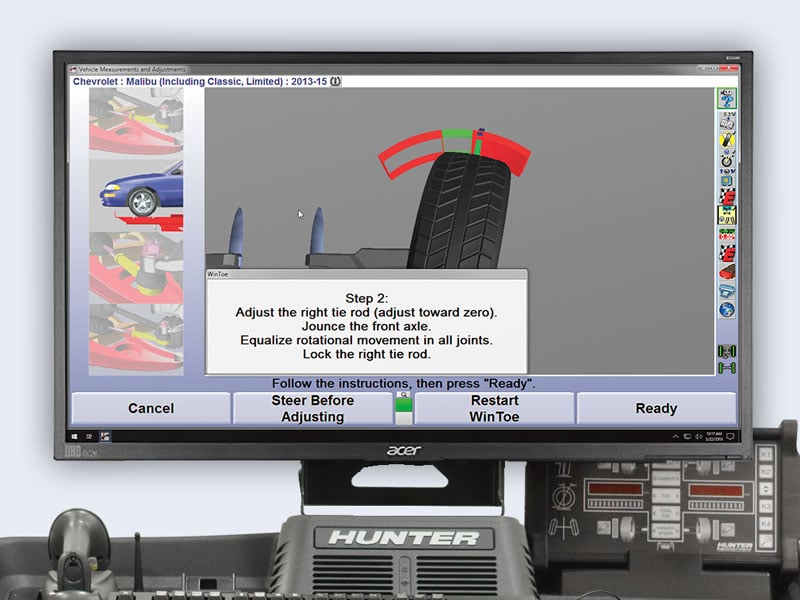

WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder.

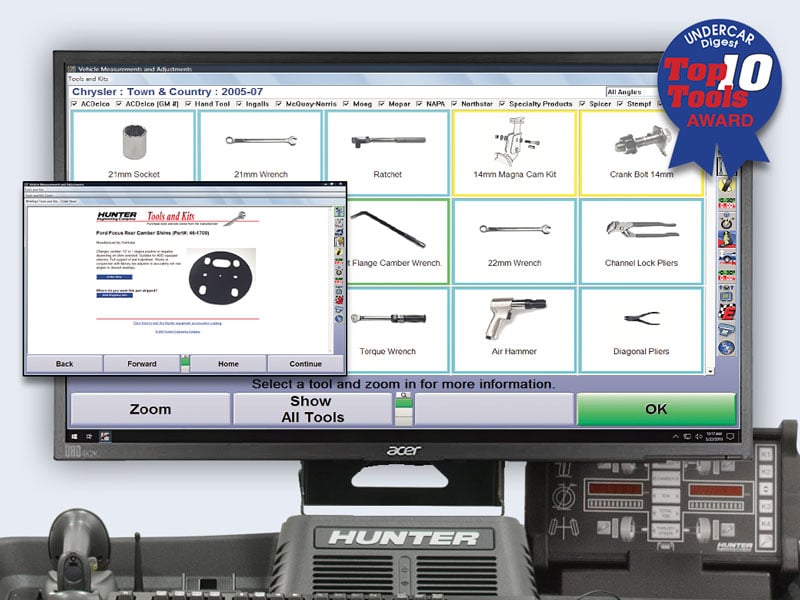

Tools & Kits Database
Save trips back and forth to the tool box by seeing all of the tools and aftermarket correction kits needed for each alignment.

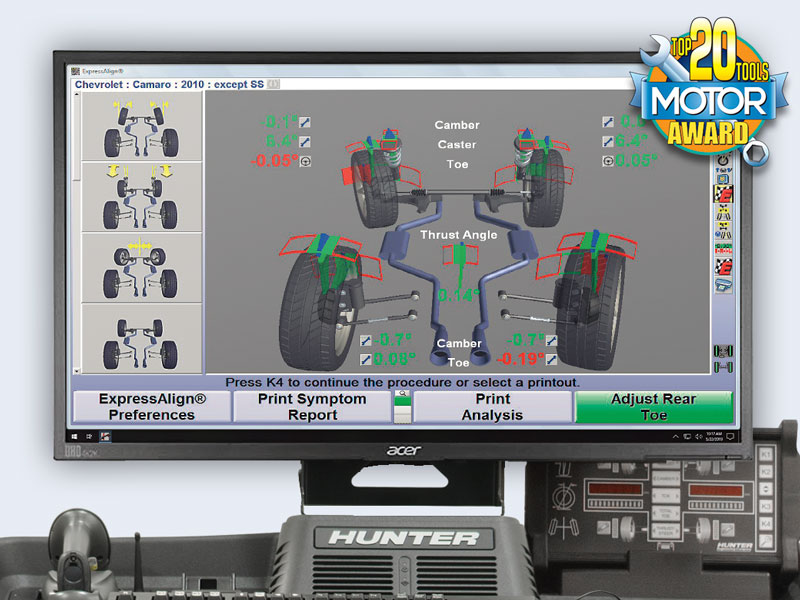

Virtual View®
See your alignment job in real-time 3-D graphics — used by experts and novices alike.
Control Arm Movement Monitor®
Cut adjustment times in half for front-shim, dualcam or dual-slot vehicles by using step-by-step graphics that let you get it right on the first try. Over 60 million vehicles benefit!

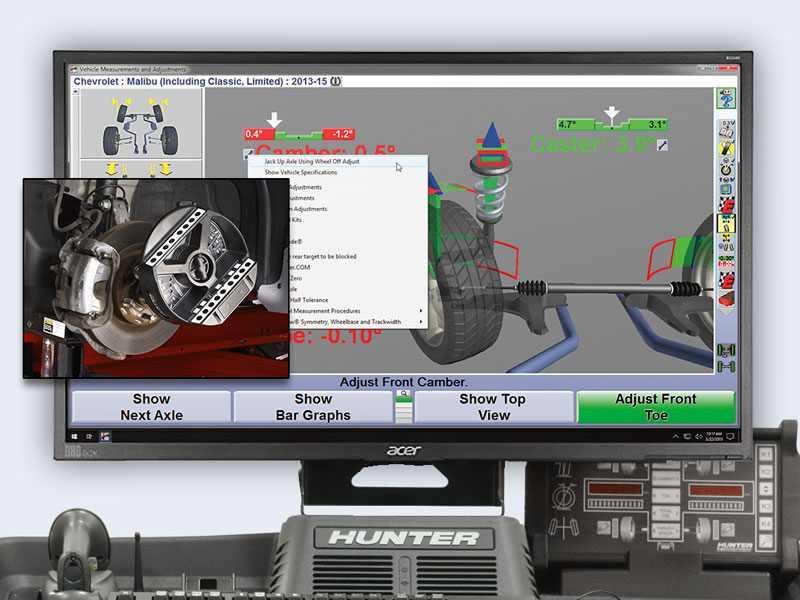

Wheel-Off Adjustment
Speed up the alignment process by making adjustments with the wheel removed.
Accessories requiredSuspension Body Dimension Audit
Shim-Select II®
Symmetry Angle Measurements
Automatic Bushing Calculator®
Live Ride Height Adjustment
Adjustment Illustrations
Video Library

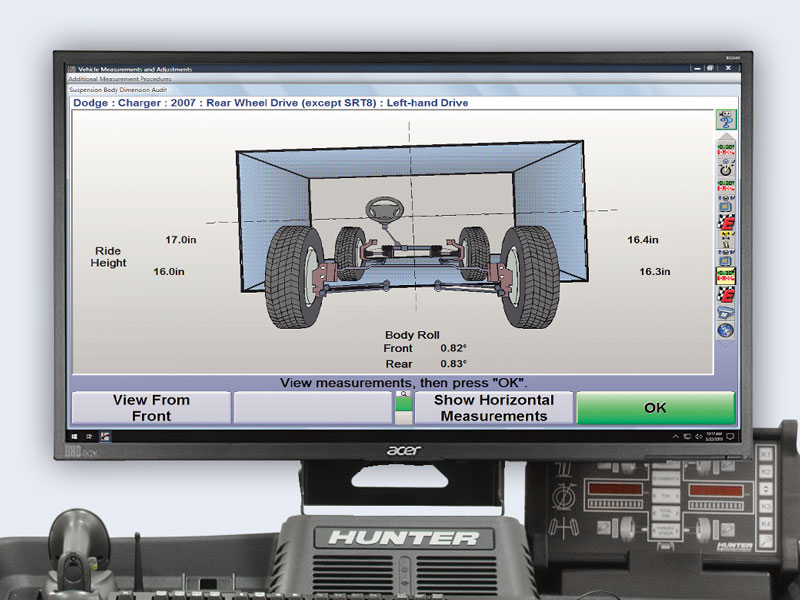

Suspension Body Dimension Audit
Quickly screen vehicles to determine alignability and collision repair needs.

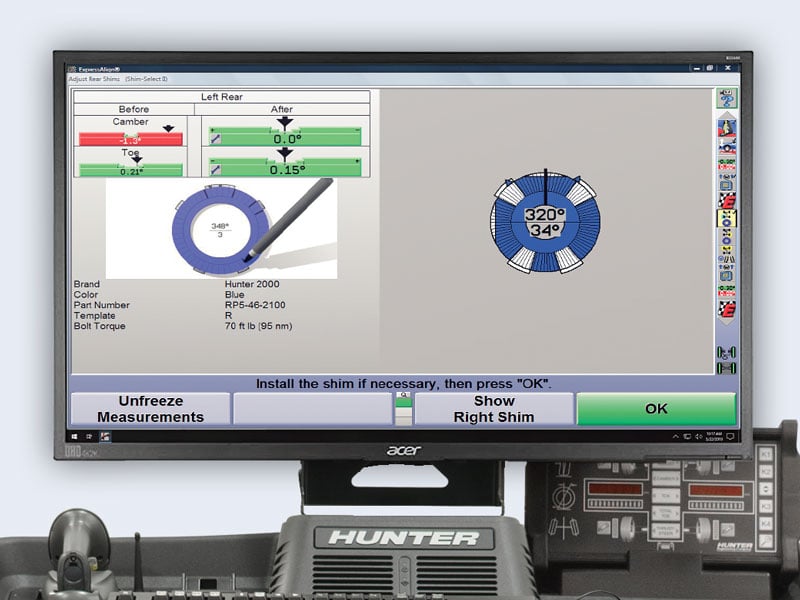

PatentedShim-Select II®
Eliminate confusing shim charts and tables. Shim-Select II® quickly calculates and displays the template you need for proper shim installation.

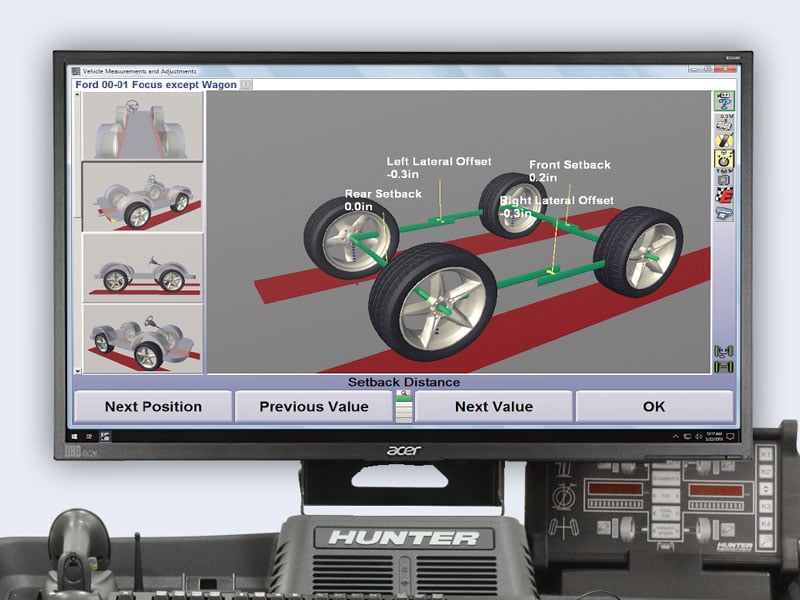

PatentedSymmetry Angle Measurements

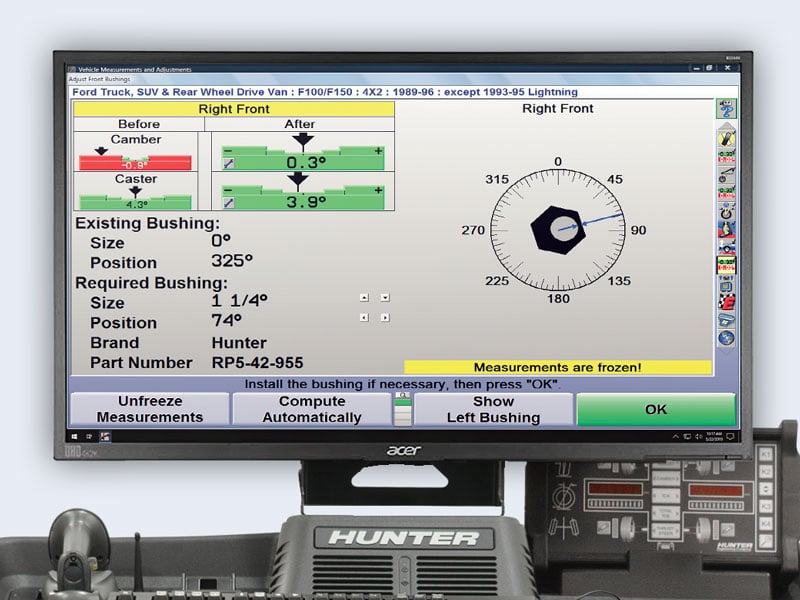

Instantly access symmetry angles and setback for your body shop customers.Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Over 10 million light trucks and vans benefit!

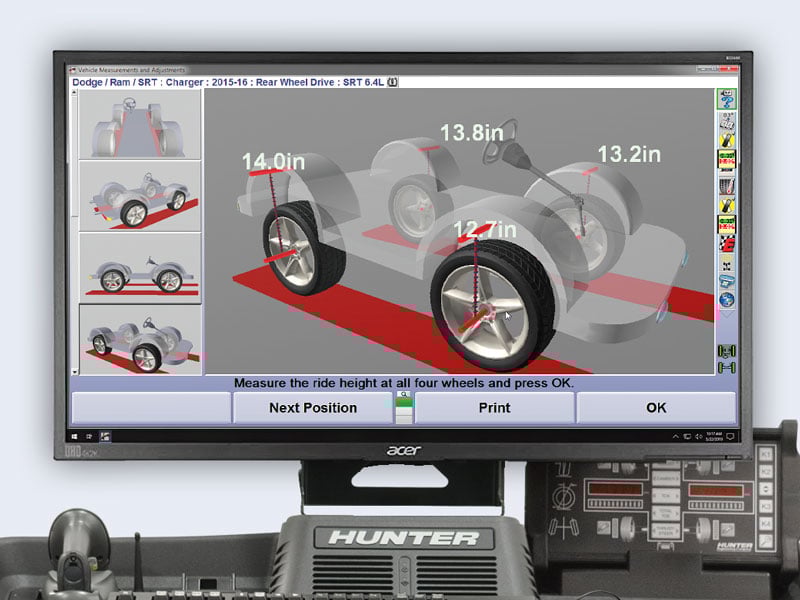

PatentedLive Ride Height Adjustment
Measure and adjust ride height in real-time. Over 20 million vehicles require ride height measurement to complete alignment service!
PatentedAdjustment Illustrations

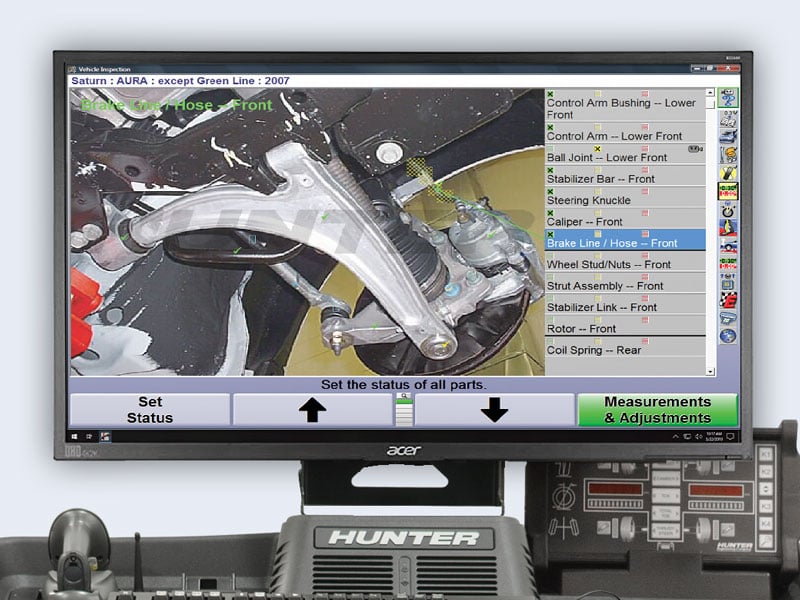

Photo adjustment illustrations provide real-life photos from the actual vehicle model for easy reference

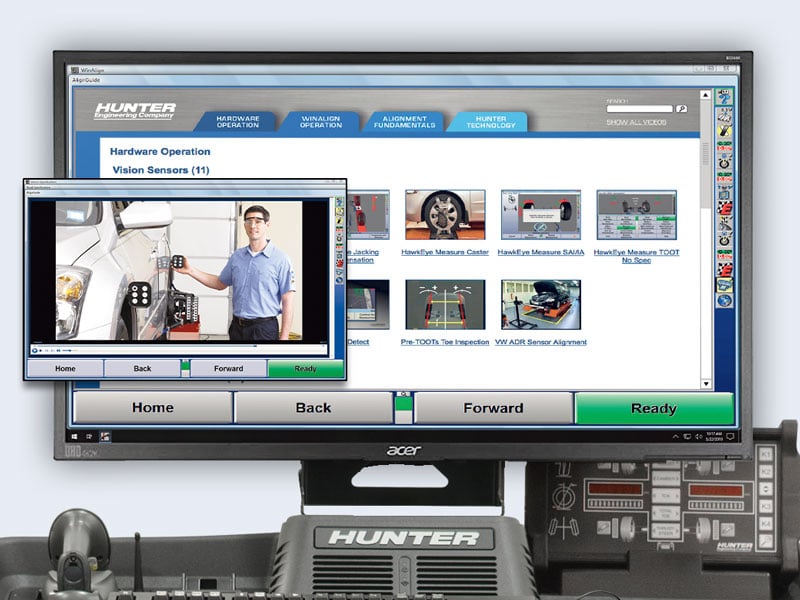

Video Library
400+ videos and animations cover all aspects of wheel alignment today.
Accessories requiredHawkEye Elite® Equipment configurations
Alignment machines built to fit your workspace
Options for every shop
Alignment console and sensor combinations to suit every need.
Sensors fit any space
Regardless of bay or space constraints, Hunter has a sensor package designed to fit.
Productive console designs
Award-winning WinAlign® software delivers dozens of productivity tools in a console to fit your needs.
Cabinet-mounted cameras
Cabinet-mounted configuration is mobile to service multiple alignment bays and provides a manual lift camera adjustment for a wide range of lift heights.
Movable cameras
Motorized and manual movable-camera configurations provide a full range of vertical travel for additional lift height.
Wall- or ceiling-mount cameras
Wall- and ceiling-mount configurations are perfect when space is at a premium.
Fixed-column cameras
Fixed column camera configurations fit most service bay applications.

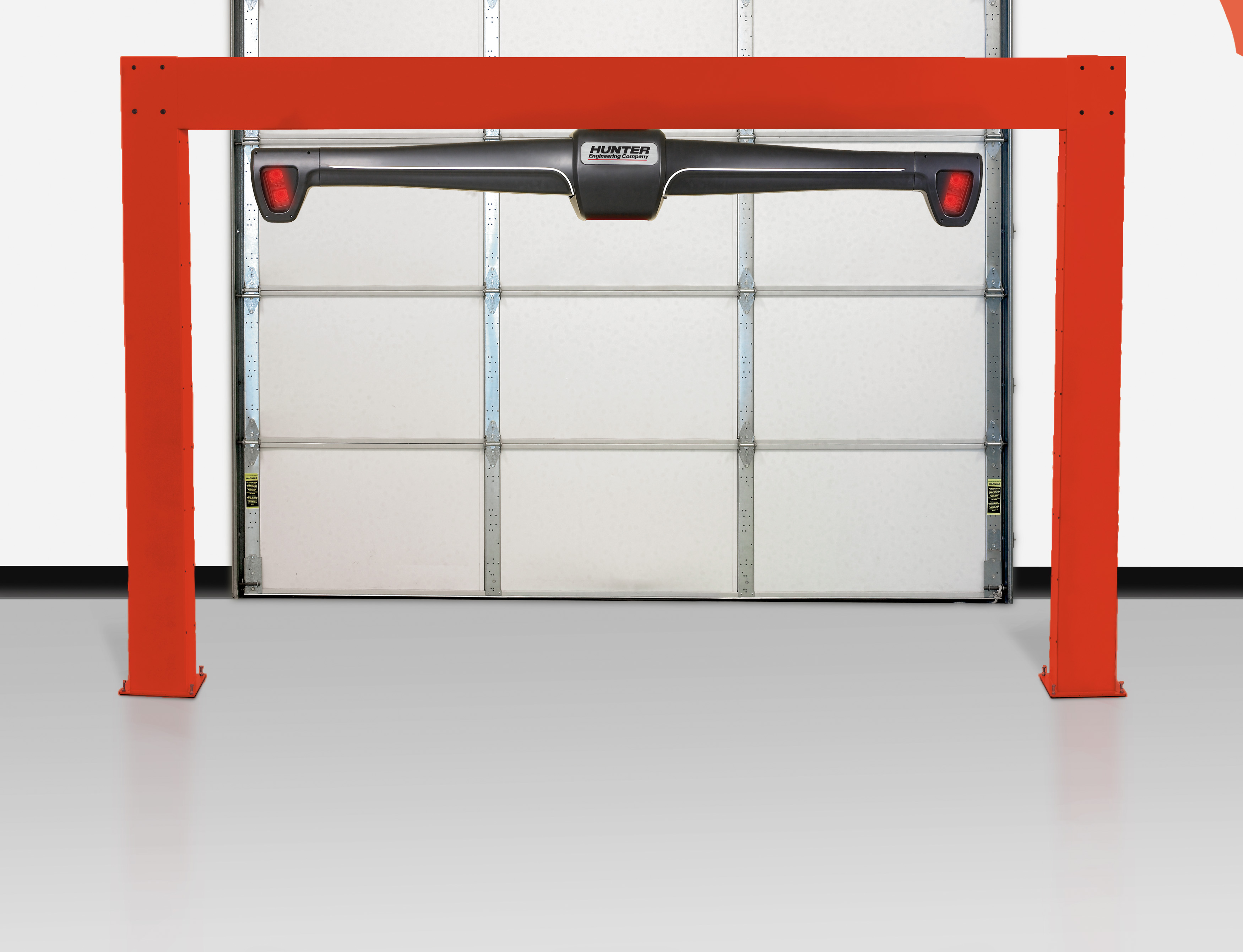

Floor-mounted overhead cameras
Floor-mounted overhead configurations are ideal for drive-through bays or to accommodate unique applications
Cabinet-mounted cameras
Cabinet-mounted configuration is mobile to service multiple alignment bays and provides a manual lift camera adjustment for a wide range of lift heights.
Movable cameras
Motorized and manual movable-camera configurations provide a full range of vertical travel for additional lift height.
Wall- or ceiling-mount cameras
Wall- and ceiling-mount configurations are perfect when space is at a premium.
Fixed-column cameras
Fixed column camera configurations fit most service bay applications.
Floor-mounted overhead cameras
Floor-mounted overhead configurations are ideal for drive-through bays or to accommodate unique applications
Large console
Maximum storage space and convenient mobility
Compact console
Mobile console unit for tighter spaces
Wall-mounted console
The most compact configuration — mount to wall or sensor column
Alignment lift rack integration
Streamline the process with Fully Integrated Alignment (FIA)
Perform alignments faster
Complete alignments 60% faster with Hunter’s synchronized wheel alignment machine and alignment rack.
FIA is automatic
Turnplates and slip plates auto-lock, and inflation station automatically inflates tires.
Eliminate errors
Automates technician tasks that can be easily forgotten or skipped.
HunterNet® 2 Portal
Take control of your equipment, numbers, and profitability
Real-time business tool to manage your most profitable equipment
- Maximize your tire shop’s performance
- Monitor your equipment ROI
- Buy genuine Hunter consumables
Customer results
Communicate results & educate your customers on misalignment
Communicate results and maintain customer data
- Save & recall vehicle results
- Allow customers to view results online
- Provide results to other business to validate warranties or insurance claims
Eliminate confusing technical conversations
- Show easy-to-understand videos, illustrations and images
- Help your customer make informed decisions
- Solidify trust with your customers
WebSpecs
Access vehicle-specific undercar information in the alignment bay
Increase technician productivity with vehicle information at their fingertips
- Explore a vast collection of vehicle-specific undercar information
- Eliminate time-consuming manual searches with our online database of advanced sensor reset requirements
- See how-to’s and instructions featuring illustrations, images and videos
See how other shops have increased productivity
Explore further
Scissor Lifts
Maximize space & productivity in your shop with best-in-class drive-on and raise height alignment lift racks.
Hunter service
Hunter deploys the largest service force of highly-qualified representatives in the industry.
Innovation Team
Hundreds of patented and exclusive features begin with the research and development team of mechanical, electrical and software engineers.
